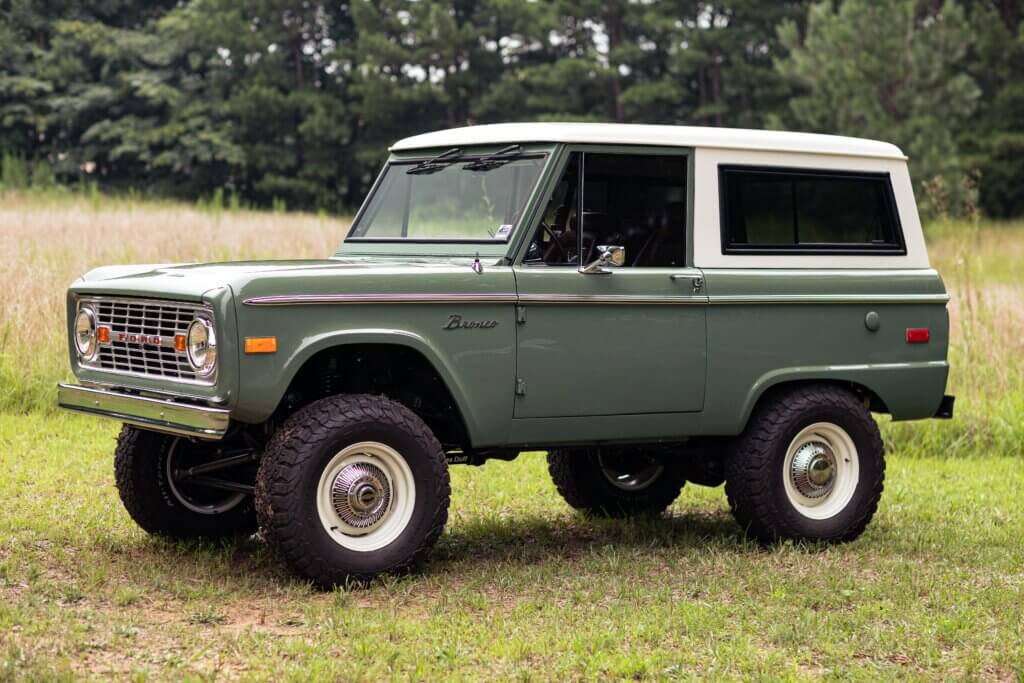

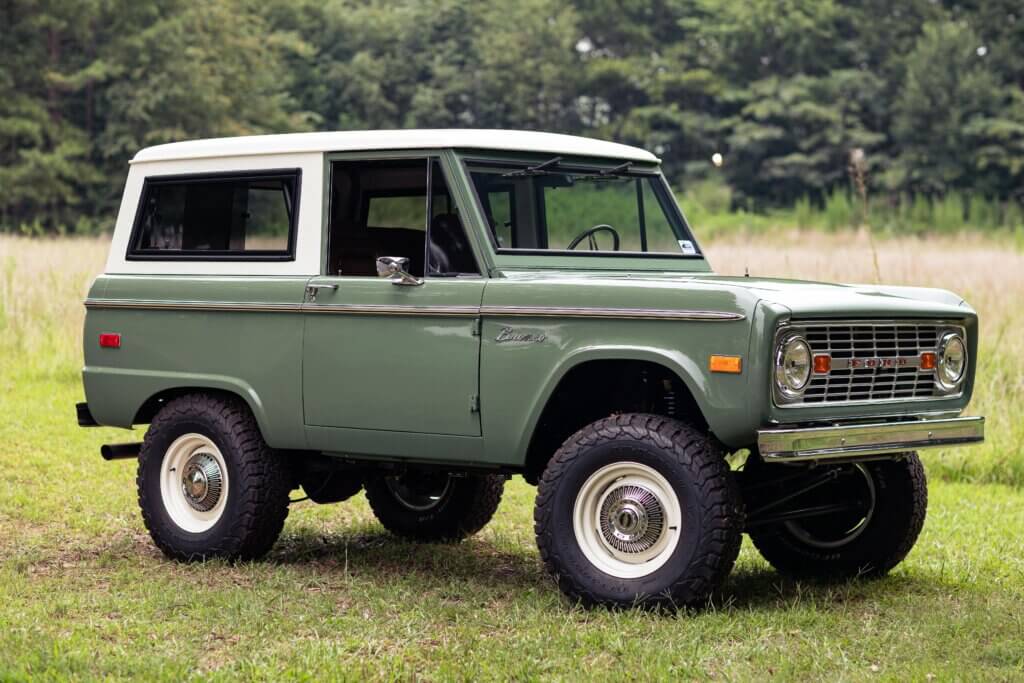

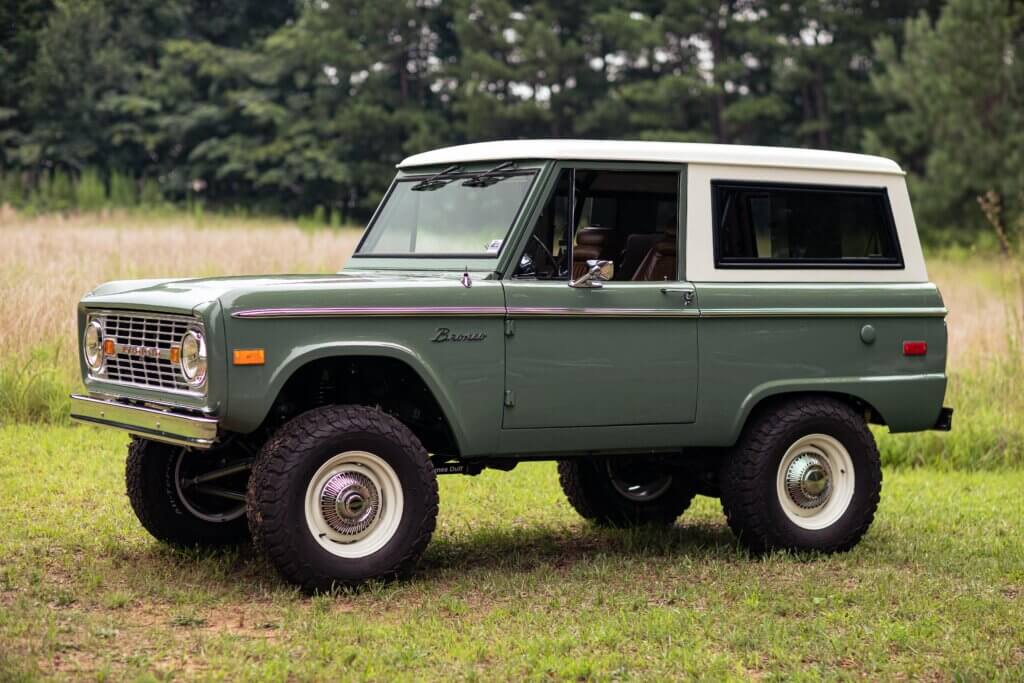

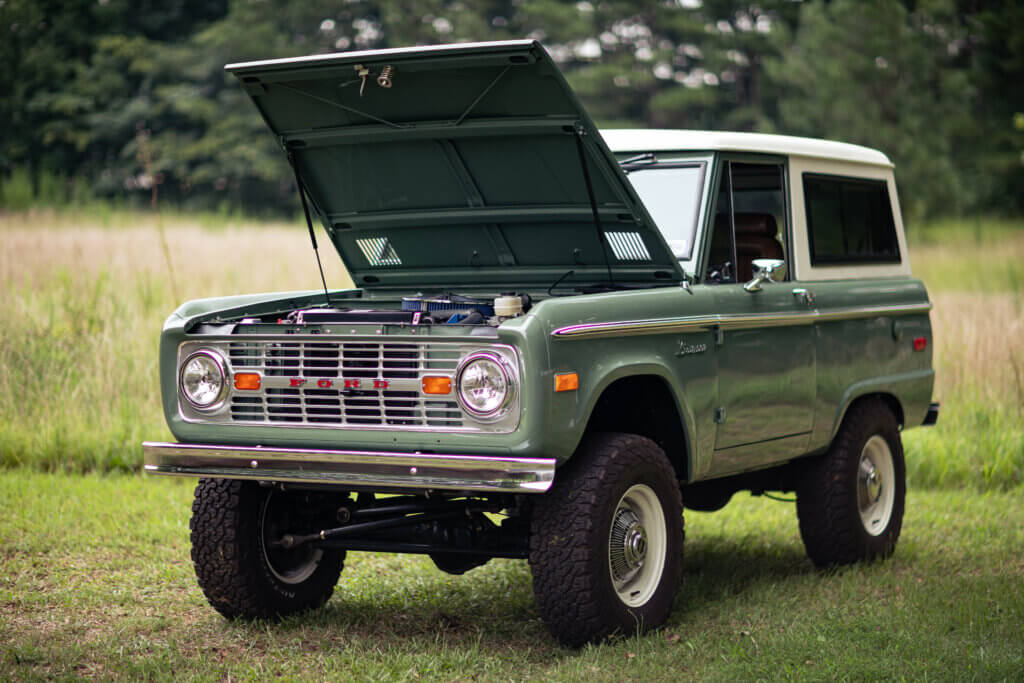

The Colombian - 1966 U13 Ford Bronco

IMG_8532-40

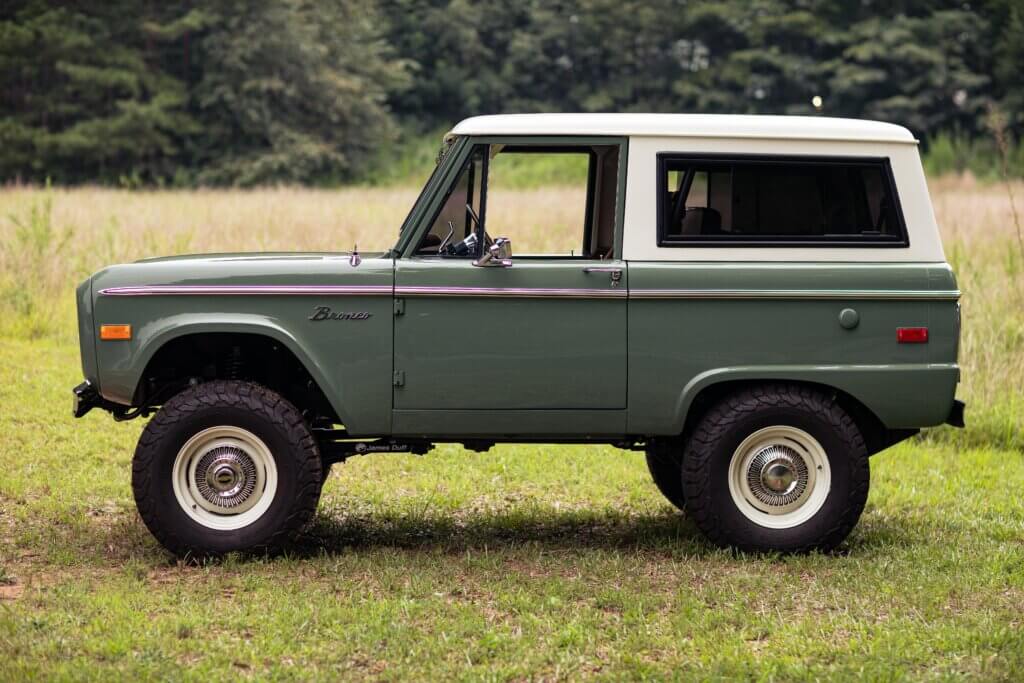

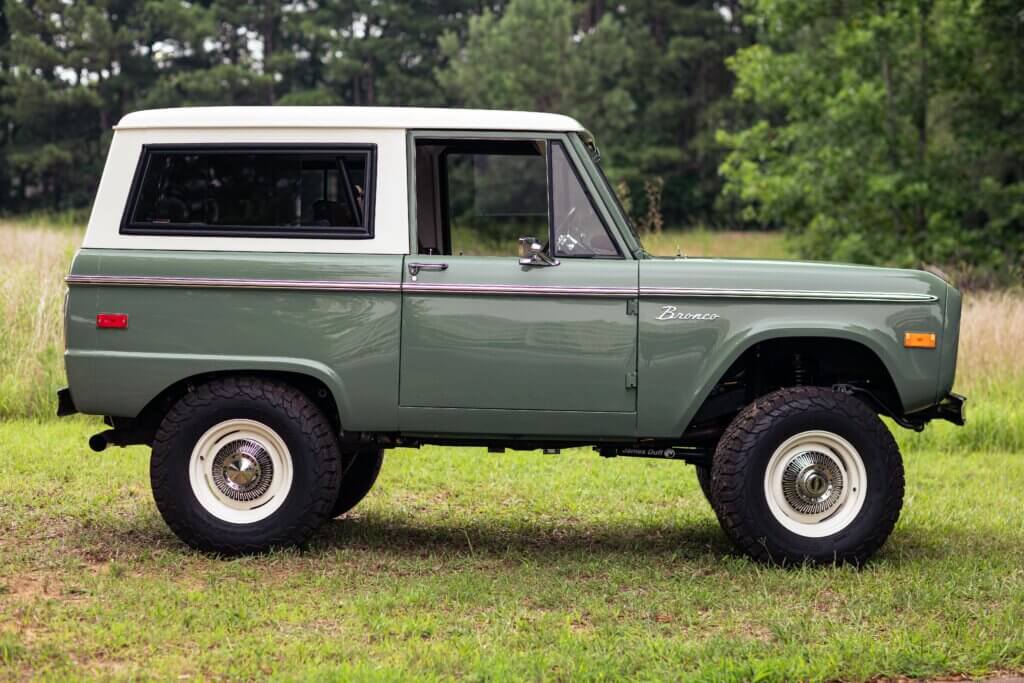

Exterior:

  • Boxwood Green Sikkens Brand
  • Body completely sandblasted to bare metal, all rust removed, metal restored or replaced.
  • Frame stripped to bare metal and powder coated hot rod black.
  • Under body sprayed for heat and noise reduction.

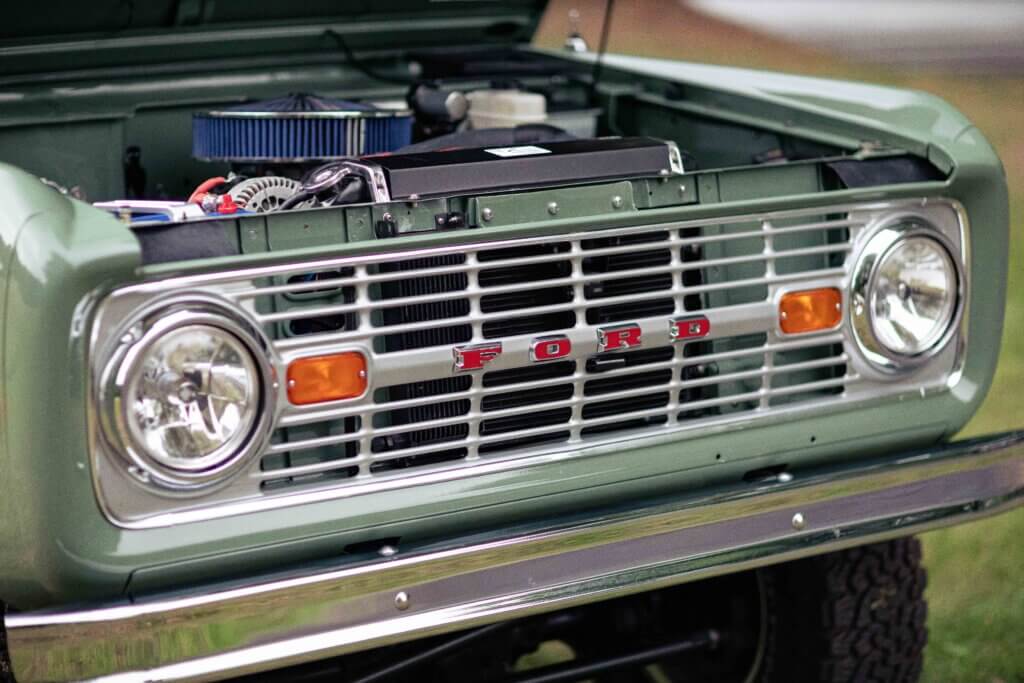

  • Show quality Chrome Stock Bumpers

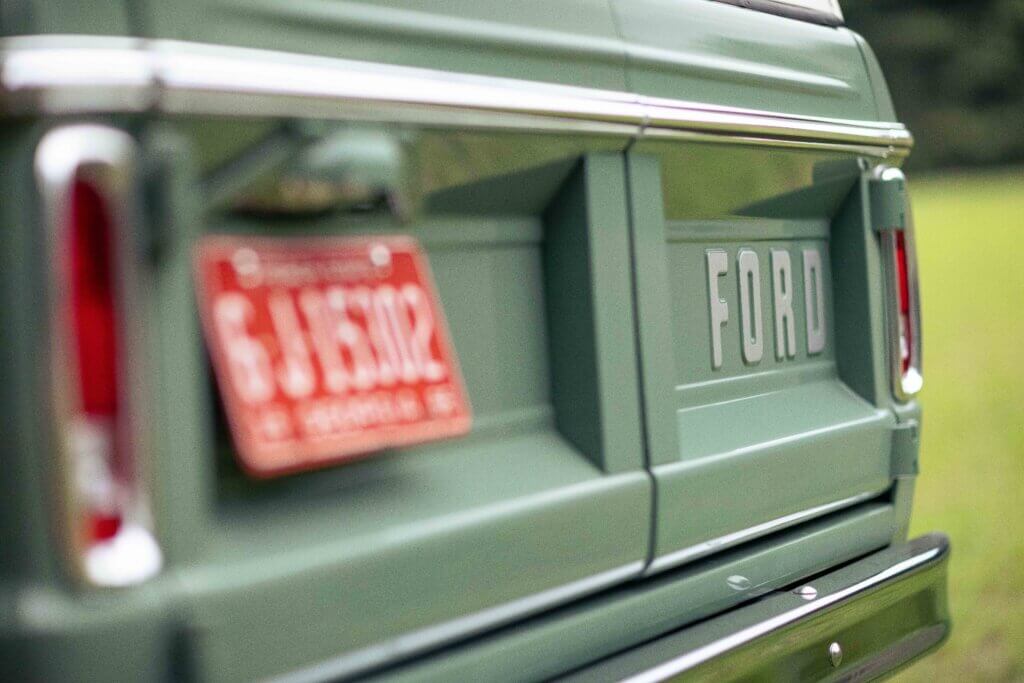

  • Exterior custom one-off split tailgate barn doors – recreated to model modification done in Colombia South America
  • AMP power steps – wired with contact actuator and switched to be able to stay closed, open or auto.
  • 16x8" Custom Steel Wheels with 285-75R16 BFGoodrich KO2

Drivetrain:

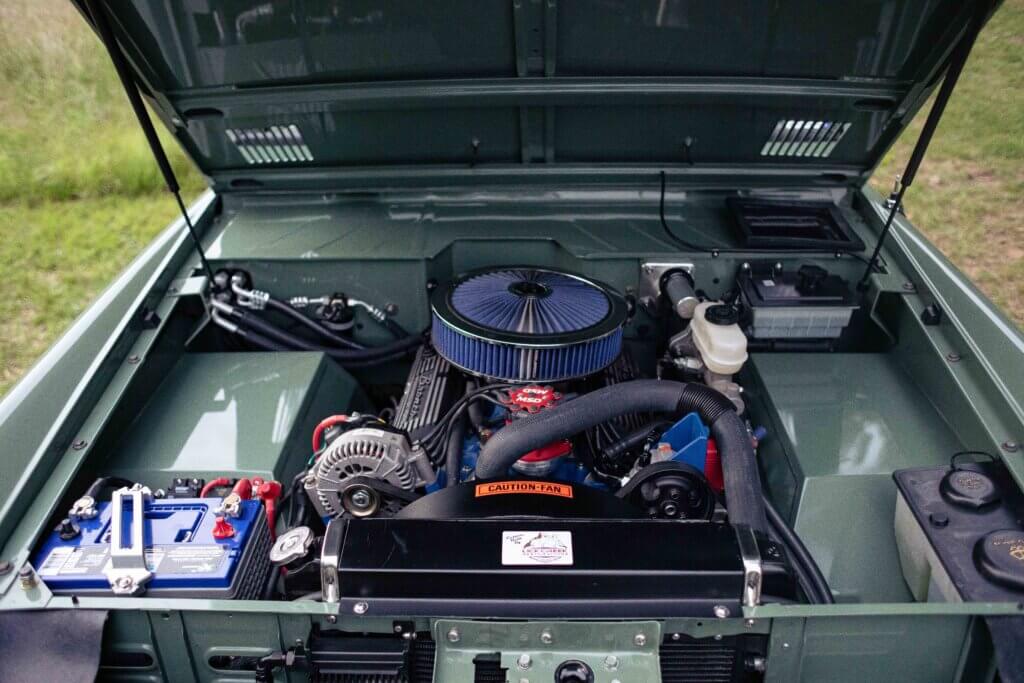

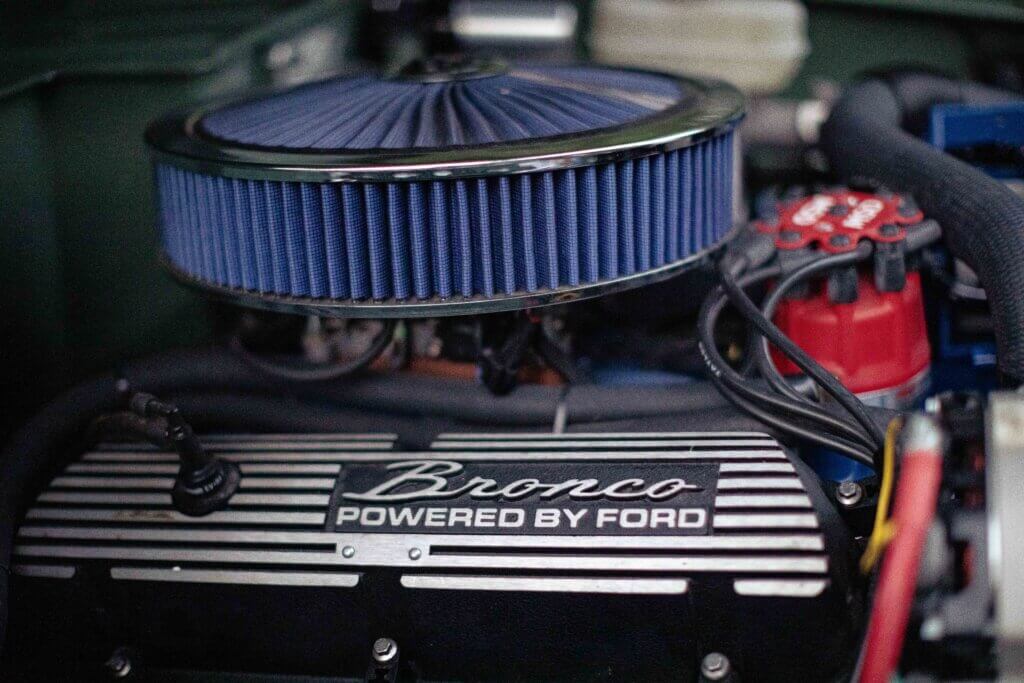

  • Ford 306 Roller motor
  • Fitech EFI
  • Edelbrock Performer Aluminum heads
  • Edlebrock Aluminum Intake

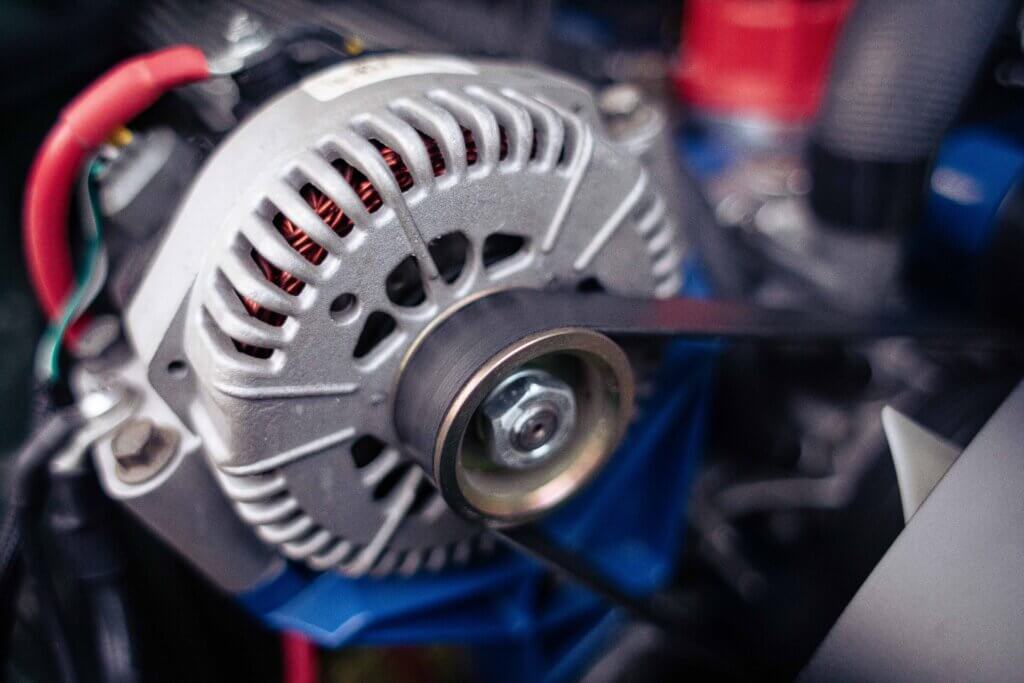

  • Powder Coated Explorer Front Serpentine System
  • 4R70W 4 speed Overdrive Automatic Transmission, with US Shift controller in glove box.
  • Dana 44 Front Axle and 9" Rear Axle equipped with new 4.56 gears.

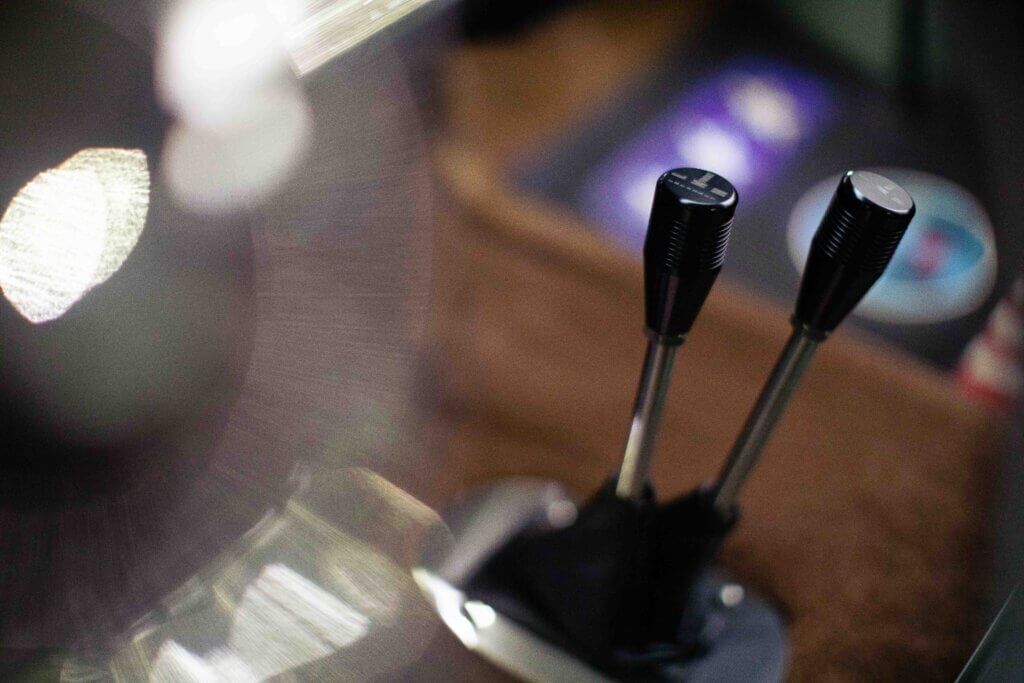

  • Rebuilt Dana 20 Transfer Case with JB Fab Twin Sticks
  • Ceramic coated short headers, 2 in to 1 exhaust w/ cat
  • 23 Gallon Fuel Tank w/ in tank high pressure fuel pump and rail mounted fuel filter.
  • Brass 3 Core, 3 Pass HE Radiator with separate transmission cooler.

Steering and Suspension:

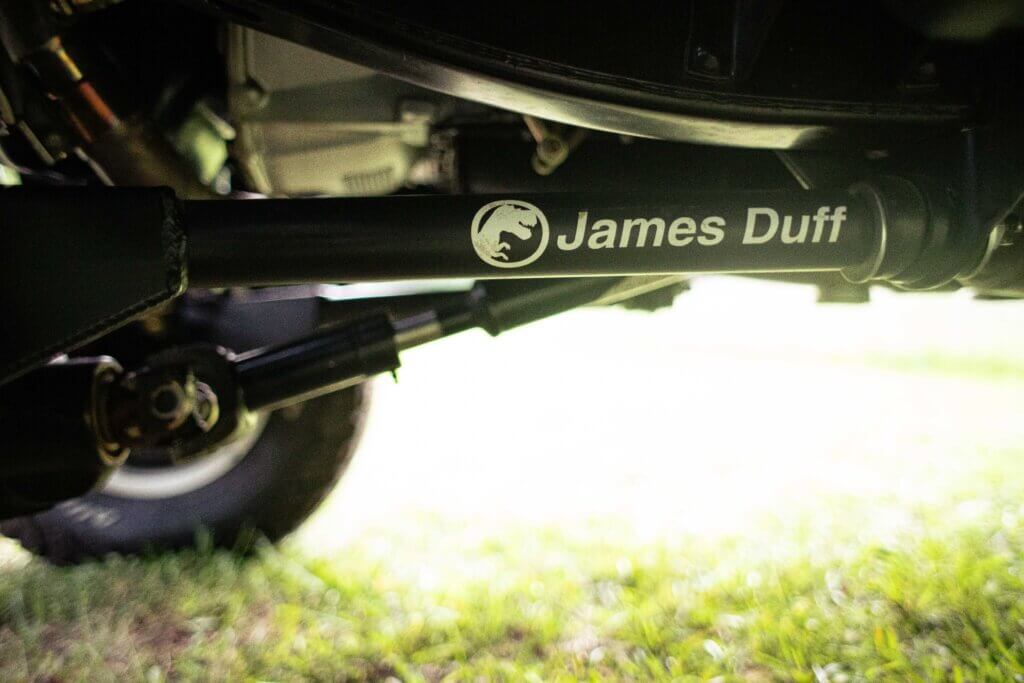

  • James Duff - Duck Tuff 2.5” Suspension Lift with Trex Arms
  • Front and Rear Hellwig sway bars
  • 1” body lift

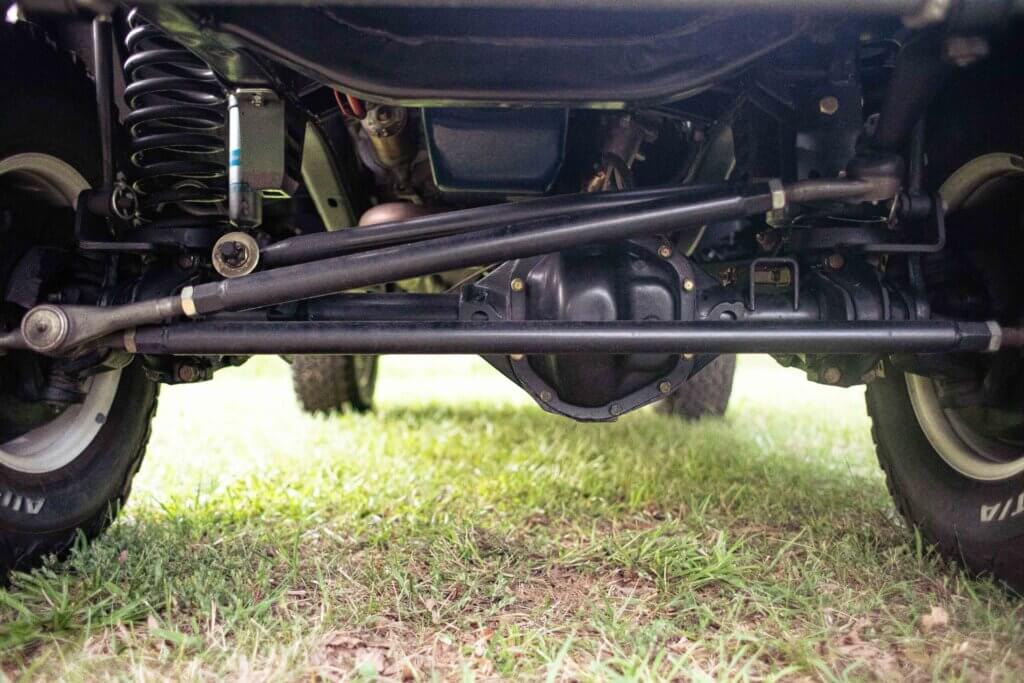

  • 1-ton steering linkage

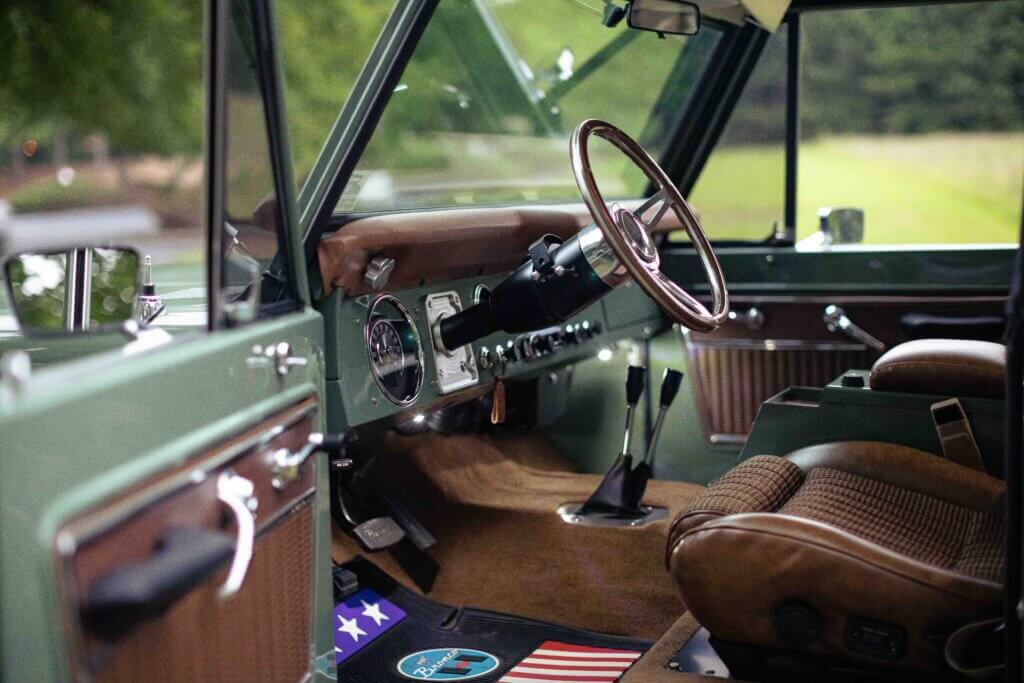

Interior:

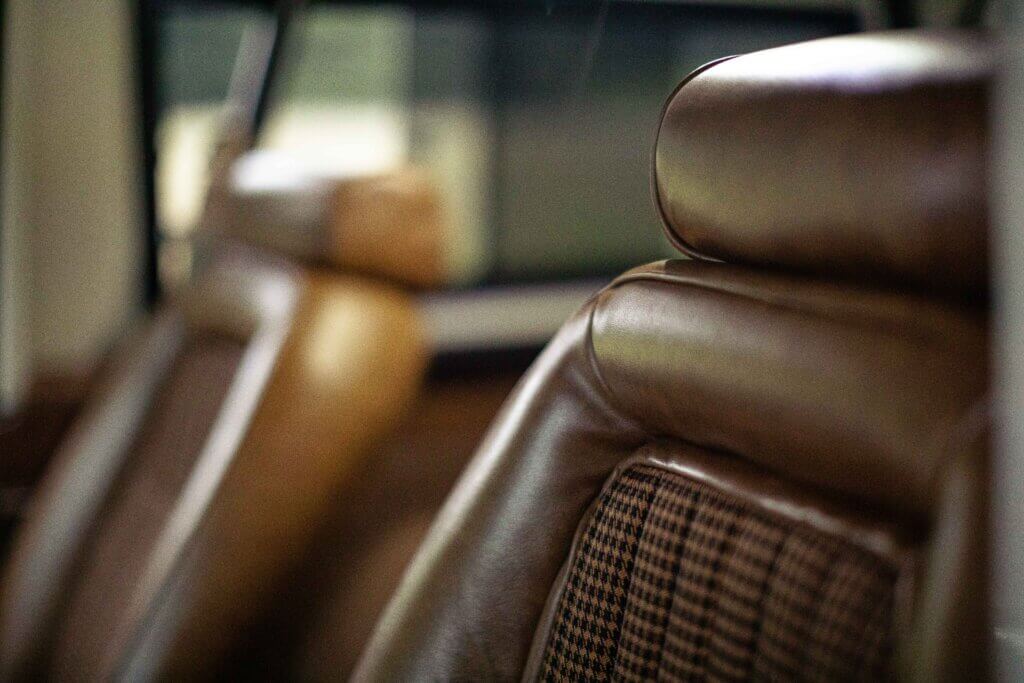

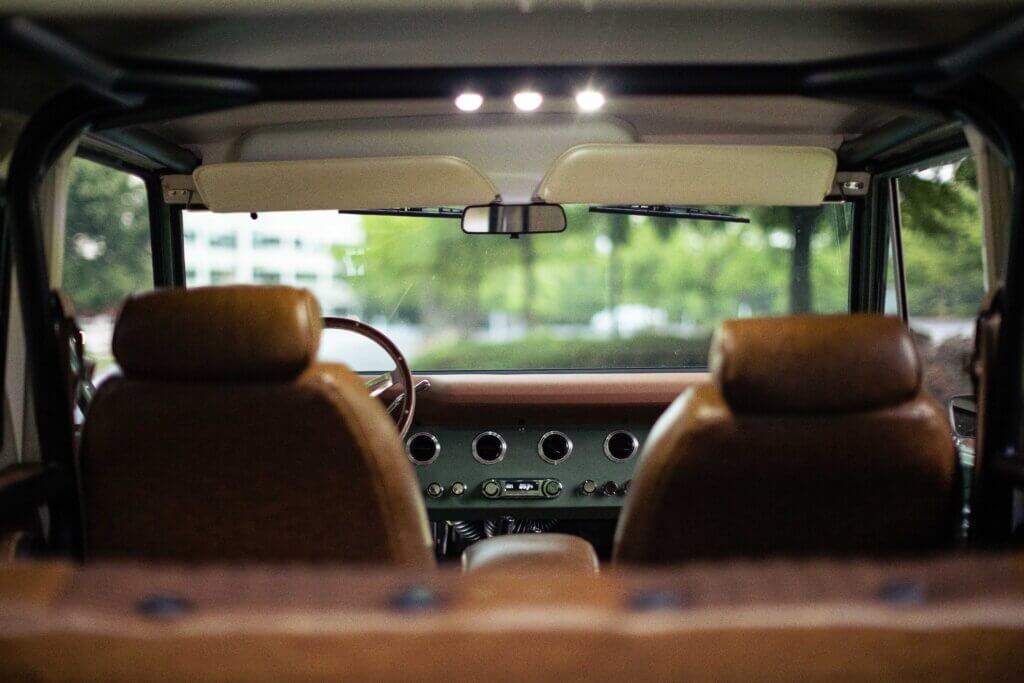

  • Modern Fox Body Mustang seats with headrests upholstered in period correct ginger ranger fabric.
  • Driver and Passenger Heated Seats
  • Fold and tumble rear seat
  • Krawlers Edge Family Roll Cage custom made longer to move rear hoop away from back seat with front and rear three point seatbelts.
  • Gen IV Vintage Air AC / Heat

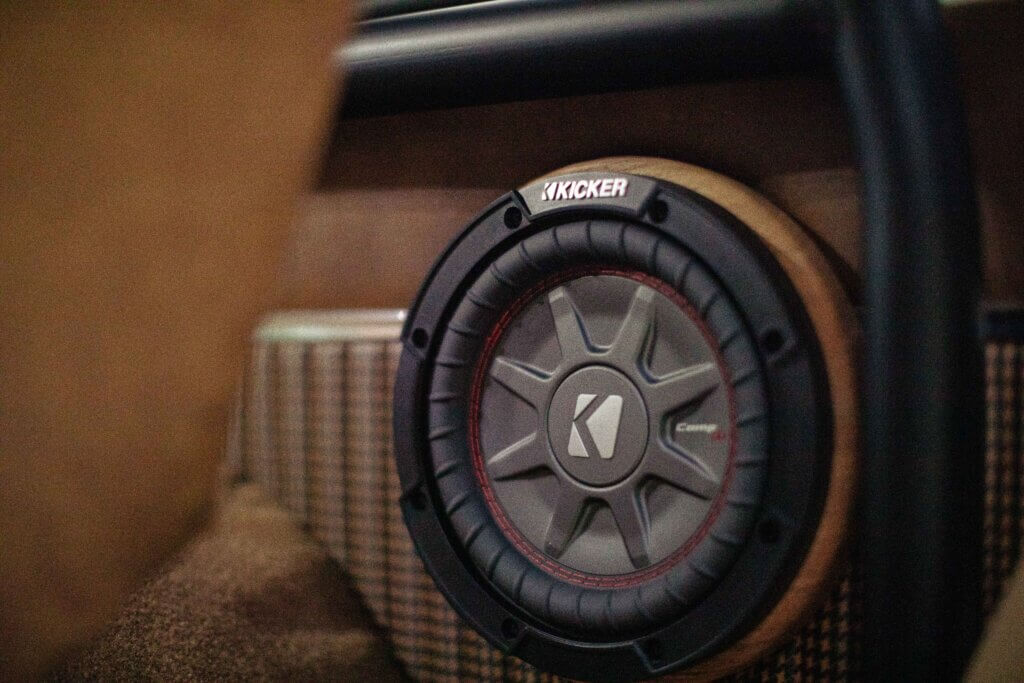

  • Bluetooth Retrosound Stereo with custom Kicker brand speakers and sub and hands free calling.

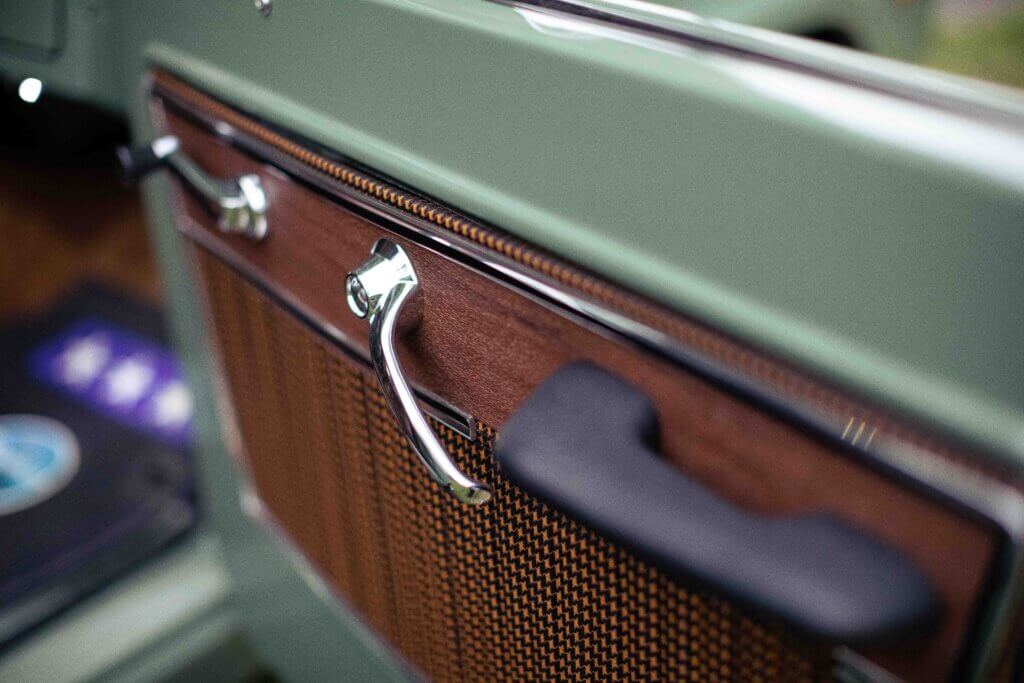

  • Power windows – hidden in stock handles

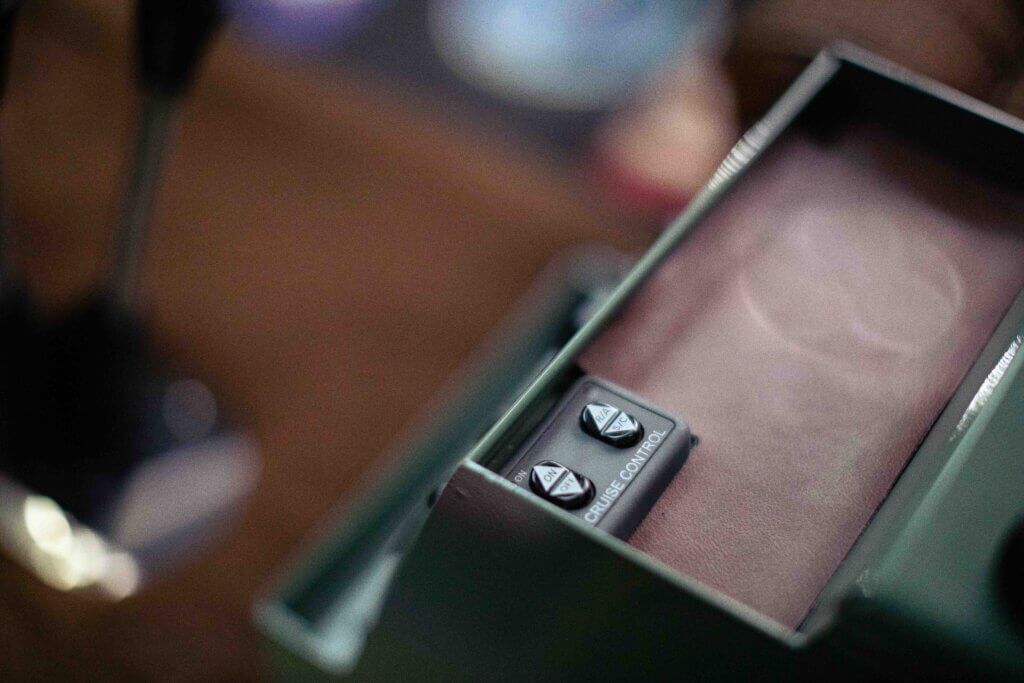

  • Cruise Control
  • Custom one-off center console, with USB Charging Ports, Additional passenger power window switch in center console for easier access.
  • LED Interior Lighting under dash and in roll cage overhead.

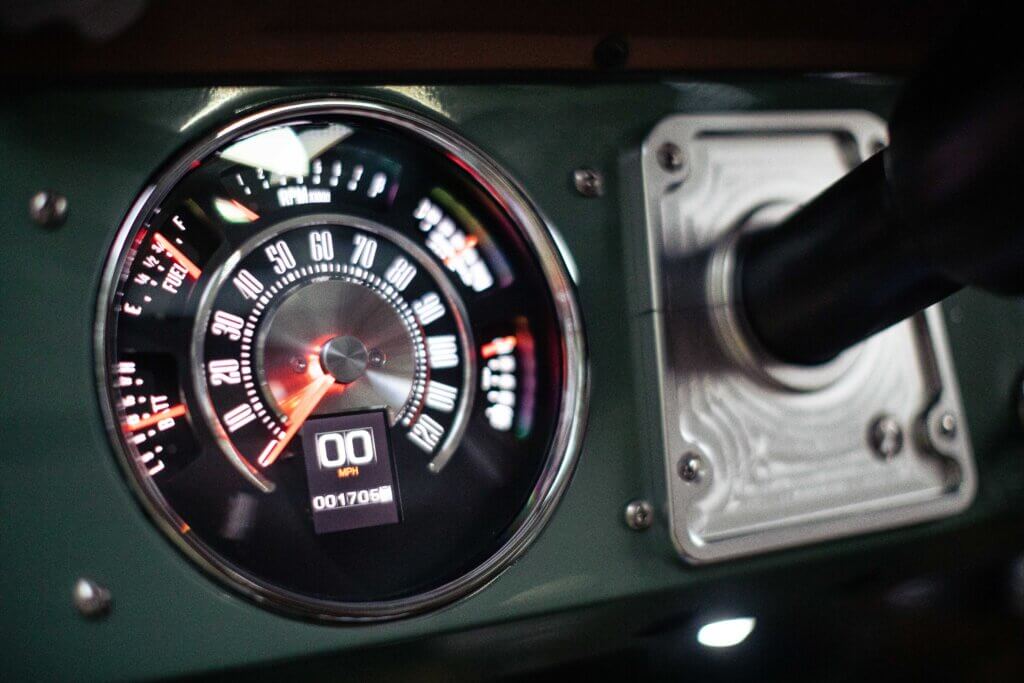

  • Dakota Digital HDX Bronco Gauge Cluster

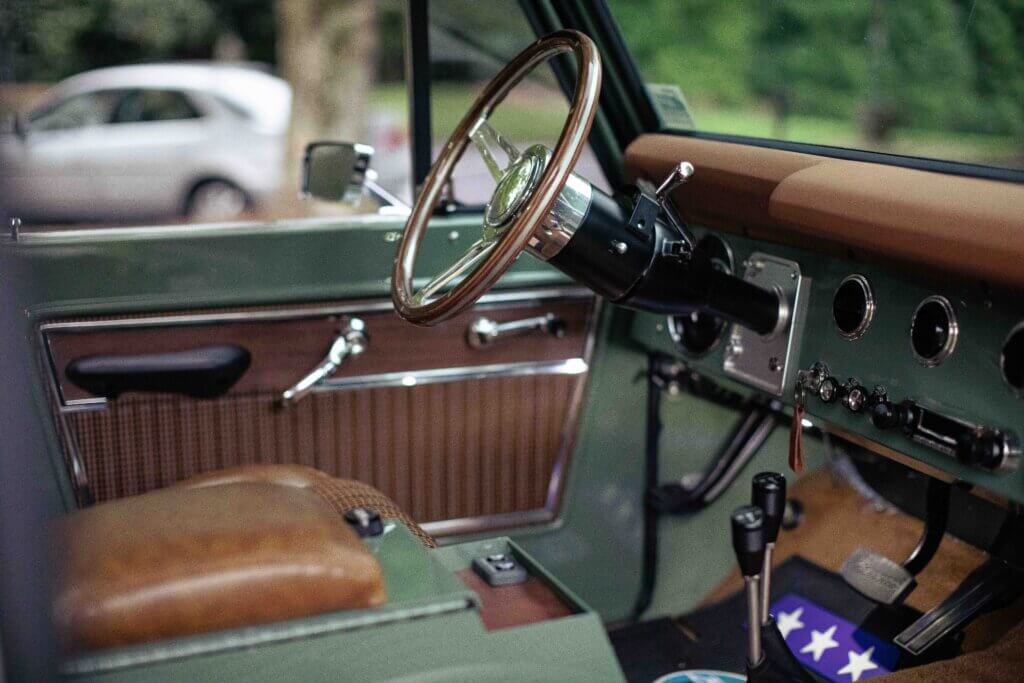

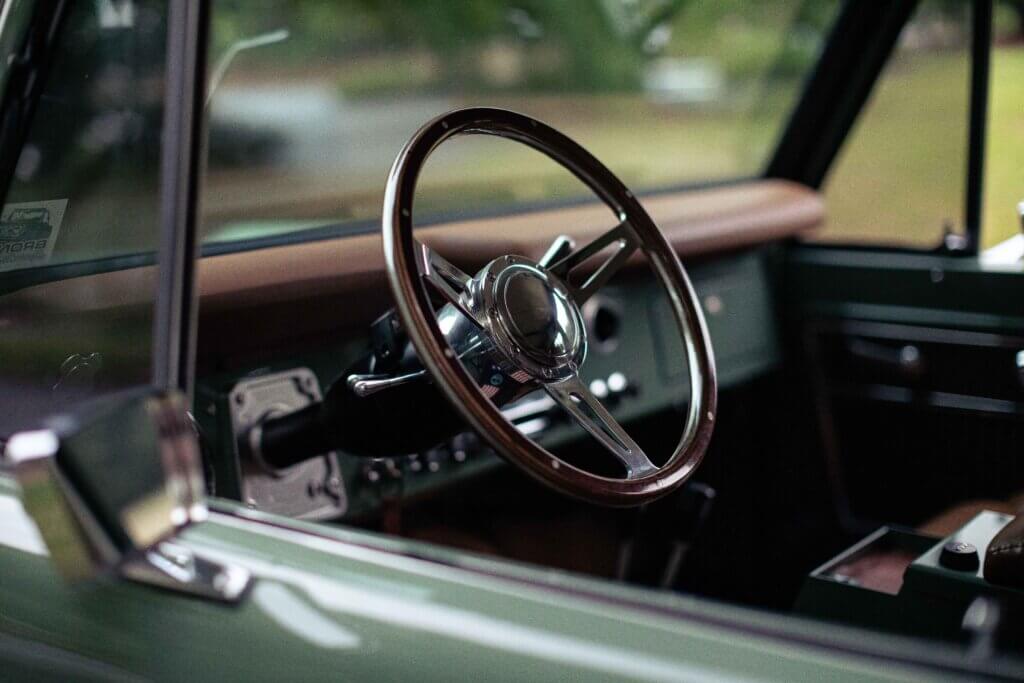

  • Flaming River Tilt Column.
  • Color matched Raptor Liner on the interior Panels
  • Insulation and Sound Deadening on the Interior Panels

More Information:

This Bronco rides on the highway @ 75MPH with two fingers. It includes, all new wiring, etc.

There are quite a few custom touches you do not see in regular restorations. We have under dash and roll bar lights connected to the door switches so they turn on when you open the doors, we added door checks front and rear – so the doors will stay open at three different locations like a modern car and not flop around.

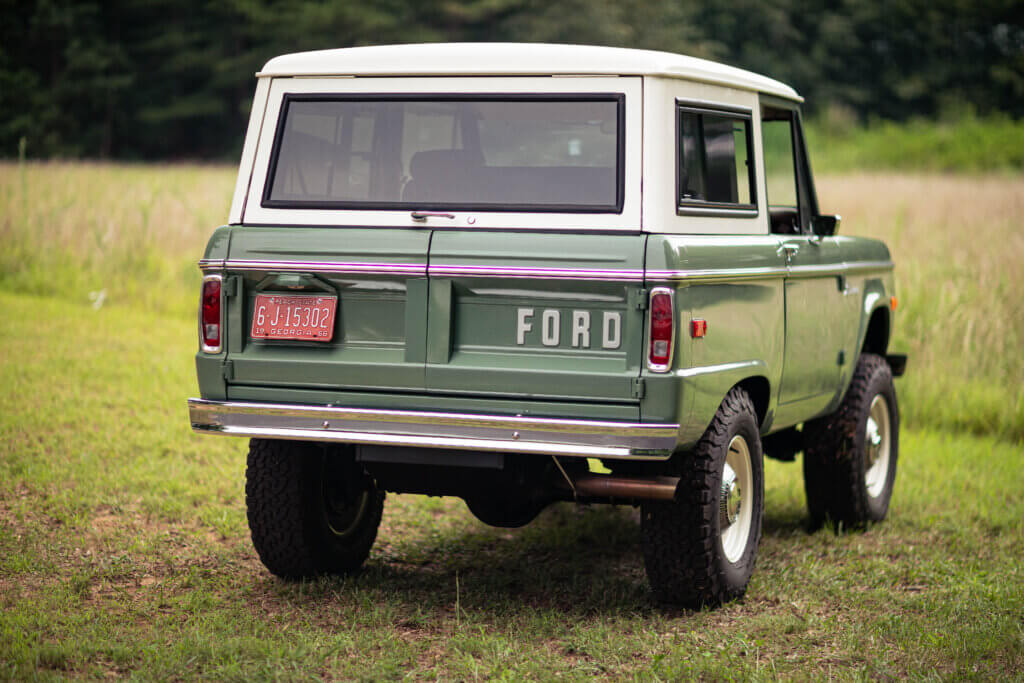

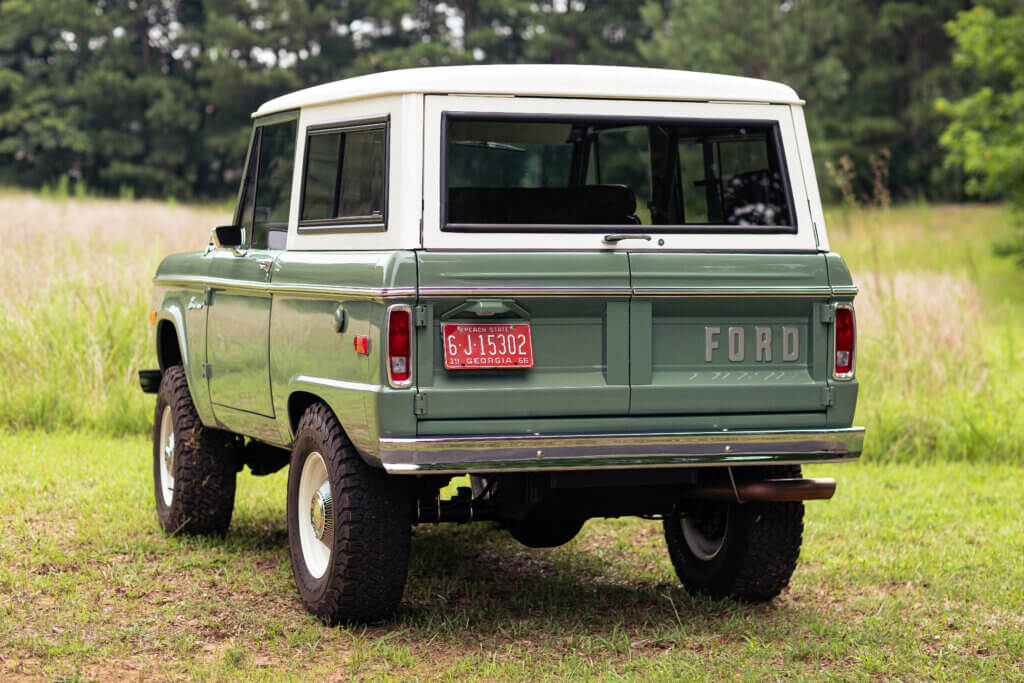

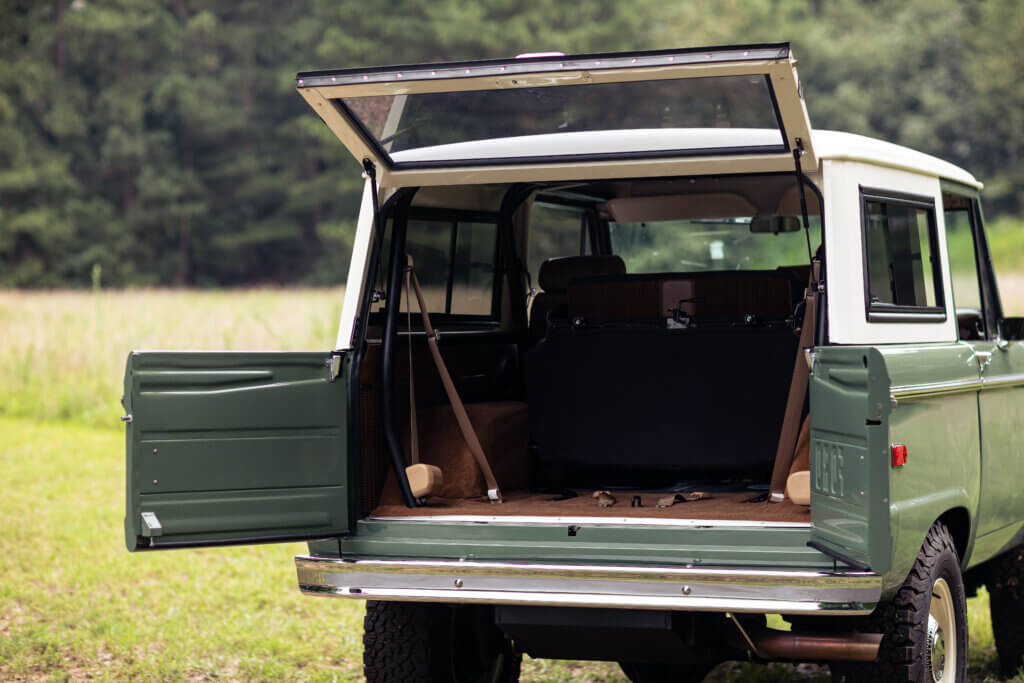

One of the highlights is the recreation of the rear barn door tailgate that was originally fabricated in South America. We used a new tailgate and installed hidden locks and releases. One of a kind and truly much more functional than a normal tailgate – they were a huge hit at Super Celebration in Townsend, TN this year and made an appearance on one of Bronco Garage's video which can be seen here.

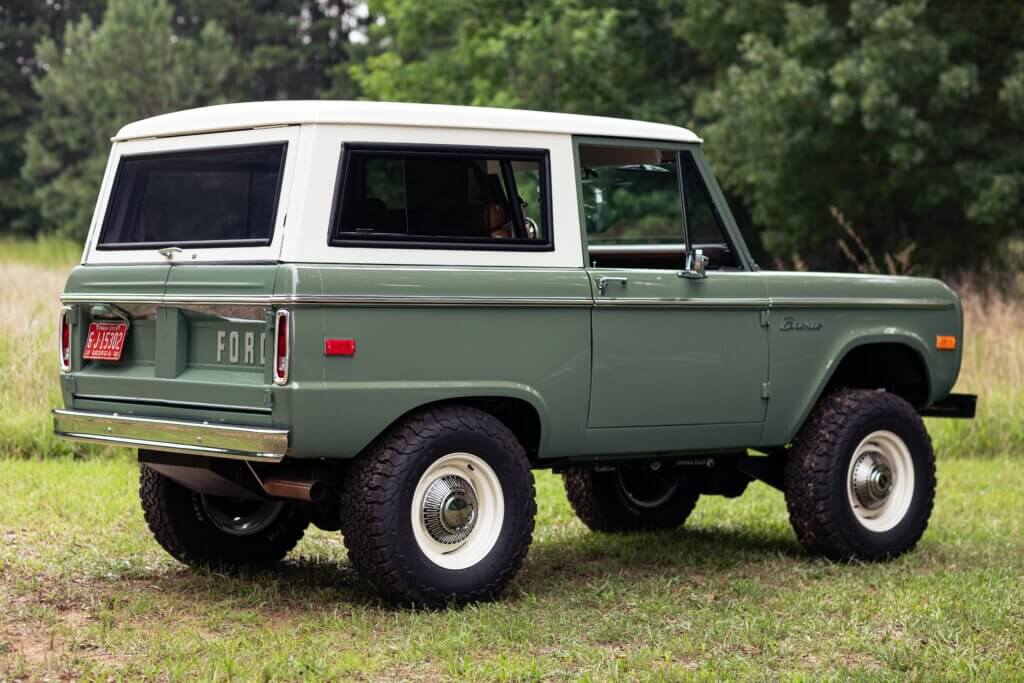

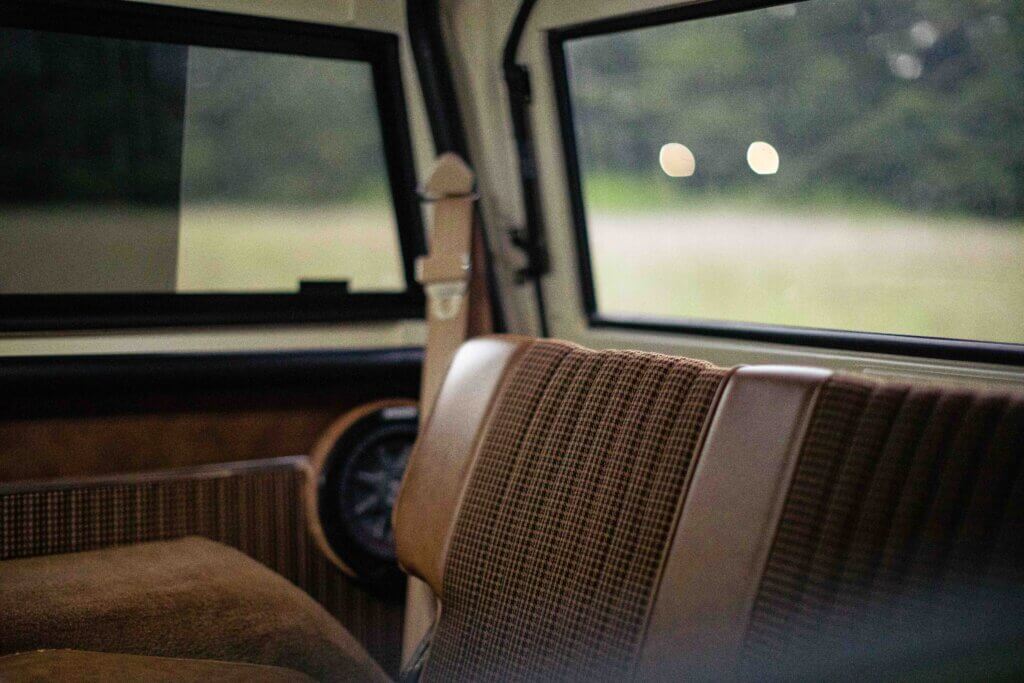

We also put the rear sliding windows in – so you can run with the front windows down and open those and not be in a wind tunnel. I would probably not have another hard top without them. All windows except for the windshield are smoke tinted glass.

All of the import, export and documentation from Colombia is included, as well as photos of it over the years over there and transport photos of it coming back to the United States.
